Primary module interface unit for module matrix. More...

#include <cassert>
#include <concepts>
#include <cstddef>
#include <initializer_list>
#include <ostream>
#include <string>
import base;

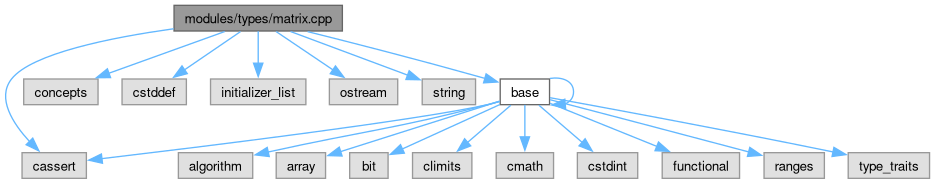

Include dependency graph for matrix.cpp:

Classes
class	ntlib::matrix< ROWS, COLUMNS, T >
	Represents a matrix with a given number of rows and colums. More...
class	ntlib::algebra_traits< matrix< ROWS, COLUMNS, T > >
	Specialization of ntlib::algebra_traits for matrix. More...

Functions
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
std::string	ntlib::to_string (matrix< ROWS, COLUMNS, T > mat)
	Converts a given matrix into a human readable string representation.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
std::ostream &	ntlib::operator<< (std::ostream &os, const matrix< ROWS, COLUMNS, T > &m)
	Writes a string representation of a given matrix to a given output stream.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator+ (matrix< ROWS, COLUMNS, T > lhs, const matrix< ROWS, COLUMNS, T > &rhs)
	Plus operator for matrix addition.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator- (matrix< ROWS, COLUMNS, T > lhs, const matrix< ROWS, COLUMNS, T > &rhs)
	Minus operator for matrix subtraction.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator* (matrix< ROWS, COLUMNS, T > lhs, T rhs)
	Times operator for right scalar multiplication.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator* (T lhs, matrix< ROWS, COLUMNS, T > rhs)
	Times operator for left scalar multiplication.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator/ (matrix< ROWS, COLUMNS, T > lhs, T rhs)
	Divides operator for scalar division.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator% (matrix< ROWS, COLUMNS, T > lhs, T rhs)
	Modulo operator for elementwise modulo by a scalar.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator+ (const matrix< ROWS, COLUMNS, T > &rhs)
	Unary plus operator. Does nothing.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T>
matrix< ROWS, COLUMNS, T >	ntlib::operator- (const matrix< ROWS, COLUMNS, T > &rhs)
	Unary minus operator.
template<std::size_t ROWS_LHS, std::size_t COLUMNS_LHS, std::size_t ROWS_RHS, std::size_t COLUMNS_RHS, Ring T>
matrix< ROWS_LHS, COLUMNS_RHS, T >	ntlib::operator* (const matrix< ROWS_LHS, COLUMNS_LHS, T > &lhs, const matrix< ROWS_RHS, COLUMNS_RHS, T > &rhs)
	Times operator for matrix multiplication.
template<std::size_t ROWS, std::size_t COLUMNS, Ring T, std::invocable< T > F>
matrix< ROWS, COLUMNS, T >	ntlib::exec_each_element (const matrix< ROWS, COLUMNS, T > &m, const F &func)
	Executes a function an each element.

Detailed Description

Primary module interface unit for module matrix.

Function Documentation

◆ exec_each_element()

template<std::size_t ROWS, std::size_t COLUMNS, Ring T, std::invocable< T > F>

matrix< ROWS, COLUMNS, T > ntlib::exec_each_element	(	const matrix< ROWS, COLUMNS, T > &	m,
		const F &	func )

export

Executes a function an each element.

TODO (pjungeblut): Try to get rid of this function.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.
F	A function object.

Parameters

m	The matrix.
func	The function to execute.

Returns: The new matrix.

◆ operator%()

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator%	(	matrix< ROWS, COLUMNS, T >	lhs,
		T	rhs )

export

Modulo operator for elementwise modulo by a scalar.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

lhs	The dividend. A matrix.
rhs	The divisor. A scalar.

Returns: A matrix with every element being the remainder of the corresponding element in lhs after divison by rhs.

◆ operator*() [1/3]

template<std::size_t ROWS_LHS, std::size_t COLUMNS_LHS, std::size_t ROWS_RHS, std::size_t COLUMNS_RHS, Ring T>

matrix< ROWS_LHS, COLUMNS_RHS, T > ntlib::operator*	(	const matrix< ROWS_LHS, COLUMNS_LHS, T > &	lhs,
		const matrix< ROWS_RHS, COLUMNS_RHS, T > &	rhs )

export

Times operator for matrix multiplication.

Template Parameters

ROWS_LHS	The number of rows of the first factor.
COLUMNS_LHS	The number of columns of the first factor.
ROWS_RHS	The number of rows of the second factor.
COLUMNS_RHS	The number of columns of the second factor.
T	The element type.

Parameters

lhs	The first factor.
rhs	The second factor.

Returns: The matrix product of lhs and rhs.

◆ operator*() [2/3]

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator*	(	matrix< ROWS, COLUMNS, T >	lhs,
		T	rhs )

export

Times operator for right scalar multiplication.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

lhs	The first factor, a matrix.
rhs	The second factor, a scalar.

Returns: The product of lhs and rhs.

◆ operator*() [3/3]

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator*	(	T	lhs,
		matrix< ROWS, COLUMNS, T >	rhs )

export

Times operator for left scalar multiplication.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

lhs	The first factor, a scalar.
rhs	The second factor, a matrix.

Returns: The product of lhs and rhs.

◆ operator+() [1/2]

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator+ ( const matrix< ROWS, COLUMNS, T > & rhs )

export

Unary plus operator. Does nothing.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

rhs	The matrix..

Returns: A copy of the old matrix.

◆ operator+() [2/2]

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator+	(	matrix< ROWS, COLUMNS, T >	lhs,
		const matrix< ROWS, COLUMNS, T > &	rhs )

nodiscardexport

Plus operator for matrix addition.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

lhs	The first summand.
rhs	The second summand.

Returns: The sum of lhs and rhs.

◆ operator-() [1/2]

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator- ( const matrix< ROWS, COLUMNS, T > & rhs )

export

Unary minus operator.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

rhs	The matrix.

Returns: A matrix with all elements negated.

◆ operator-() [2/2]

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator-	(	matrix< ROWS, COLUMNS, T >	lhs,
		const matrix< ROWS, COLUMNS, T > &	rhs )

export

Minus operator for matrix subtraction.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

lhs	The minuend.
rhs	The subtrahend.

Returns: The difference of lhs and rhs.

◆ operator/()

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

matrix< ROWS, COLUMNS, T > ntlib::operator/	(	matrix< ROWS, COLUMNS, T >	lhs,
		T	rhs )

export

Divides operator for scalar division.

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

lhs	The dividend. A matrix.
rhs	The divisor. A scalar.

Returns: The quotient matrix.

◆ operator<<()

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

std::ostream & ntlib::operator<<	(	std::ostream &	os,
		const matrix< ROWS, COLUMNS, T > &	m )

export

Writes a string representation of a given matrix to a given output stream.

Template Parameters

ROWS	The number of rows.
COLUMS	The number of colums.
T	The element type.

Parameters

os	The given output stream.
m	The given matrix.

Returns: Reference to the output stream.

◆ to_string()

template<std::size_t ROWS, std::size_t COLUMNS, Ring T>

std::string ntlib::to_string ( matrix< ROWS, COLUMNS, T > mat )

export

Converts a given matrix into a human readable string representation.

For example, the matrix

\[\begin{pmatrix} a & b \\ c & d \end{pmatrix} \]

will be converted into "{{a,b},{c,d}}".

Template Parameters

ROWS	The number of rows.
COLUMNS	The number of columns.
T	The element type.

Parameters

mat	The given matrix.

Returns: A string representation of the given matrix.
